GATOR 10" 3-JAW SUPER THIN LOW PROFILE SCROLL CHUCK

GATOR PART NUMBER 1-403-0100


PRODUCT INFORMATOIN

Part Number 1-403-1000
Chuck Type Scroll Self-Centering
Chuck Mount Flat Back
Spindle Type Table Mount
Chuck Dia.(in) 10.04
Thru-Hole (in) 3.1496
Gripping Range Min - Max (in) 0.472 - 9.449
Material Cast Iron
Number of Jaws 3
Jaw Type 2 PC Hard  Reversible
Weight Gross (lbs) 62.00
Includes 1 Set of Hard Master and Hard Top Reversible Jaws, Chuck Mounting

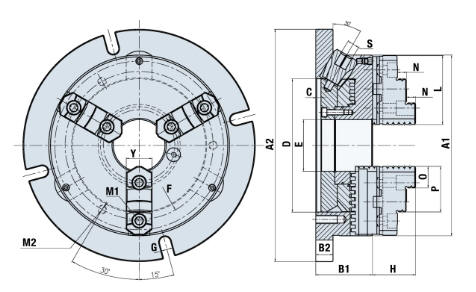

DIMENSIONS

A1 (in) 10.04
A2 (in) 12.40
C (in) 0.2362
D H6 (in) 7.48
E Hole (in) 3.15
F (in) 8.27
G Slot Size (in) 0.6299
B1 (in) 2.87
B2 (in) 0.79
H (in) 2.13
P (in) 2.52
O (in) 1.14
L (in) 3.74
M1 Jaw Bolts (mm) 3-M12x1.75
Jaw Bolt Hex Key Size (mm) 10
M2 Base Thread (mm)
 		 3-M12x1.75
N (in) 0.53
S (in) 0.55
Y Jaw Width (in)
 		 1.42
Mounting Bolt Thread (mm) M14
Mounting Bolt Length (in) 2.56
Mounting Bolt Square Head Size (in) 0.98
Mounting Bolt Nut Wrench Size (in) 0.87


ACCESORIES

Jaws
Hard Top Jaws (Set) TJ-SK3-250
Hard Master Jaws (Set) MJ-SK3-250
Soft Top Jaws (Set) STJ-SK3-250
Spare Parts
Scroll (1Pc) SC-NB-250
Pinion (1Pc) PI-NB-250
Chuck Wrench (1Pc)
 		 W-NB-250
Pinion Screw (1Pc) PH-NB-250
